| Specification |
Details |
| Model |

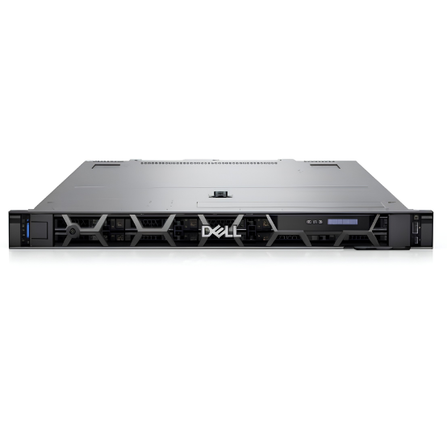

Dell PowerEdge R640 |
| Form Factor |
1U Rack Server |
| Processor |
Up to 2 × Intel Xeon Scalable |
| Max Cores |
Up to 28 cores per CPU |
| Memory |
Up to 3TB DDR4 ECC |
| DIMM Slots |
24 × DDR4 |
| Storage |
SAS / SATA / SSD / NVMe |
| Drive Bays |
Up to 10 × 2.5″ or 4 × 3.5″ |
| RAID |
PERC H330 / H730P / H740P / HBA330 |
| Networking |
Up to 4 × 10GbE / 2 × 25GbE |
| PCIe |
Up to 3 × PCIe Gen 3 |
| GPU Support |
Up to 3 × NVIDIA T4* |
| Management |
Dell iDRAC9 |
| Power Supply |
Up to 1600W |
| Cooling |
Up to 8 hot-plug fans |
| OS Support |
Windows Server / VMware ESXi / Linux |
| Height |
42.8 mm |
| Weight |
Up to 21.9 kg |
